We Measure Dissolved Oxygen
For a detailed product description please contact MECOSA or the Manufacturer's Web site

product category product picture brief product description manuf. web site

Dissolved Oxygen Sensors:
Amperometric Sensors

Oxygen sensors

Amperometrical dissolved oxygen sensors are based on the Clark's principle. HAMILTON's amperometric sensors offer a short response time of 30 to 60 seconds. Maintenance is rarely necessary due to the improved design of the sensor. The construction of the electrode guarantees excellent performance even after 100 sterilizations without the need for maintenance. The sensitivity to flow speed is negligible. The stabilization time is less than 15 minutes.
HAMILTON's DO sensors can measure down to 1ppb up to saturation or 0,012 % - 200 % of air oxygen.
For detailed information please ask MECOSA for HAMILTON's Process Sensor Catalogue.

hamiltoncompany
.com

Polarization modules

Polarization module
Polarization modules prepare replacement DO sensors which are not connected to an amplifier for immediate use. hamiltoncompany
.com

Dissolved Oxygen Sensors
Optical Sensors

Optical DO sensors
With its optical dissolved oxygen sensor VISIFERM, HAMILTON is the first company to offer self-contained oxygen measurement in the popular 12 mm format similar to standard process pH electrodes. Combined in the VISIFERM sensor shaft are: high-temperature-resistant optical electronics, microprocessor, 4 - 20 mA analogue output, digital RS 485 interface with ModBus protocol, and an Electro-Chemical Sensor (ECS) interface. Use of the 4 - 20 mA output or the RS 485 interface makes an external measurement amplifier unnecessary, allowing measurement signals to be fed directly into a process control system.
For detailed information please ask MECOSA for HAMILTON's Process Sensor Catalogue.
hamiltoncompany
.com

Electrode Holder:
Hygienic
Sensor Sockets

hygienic Socket
With its space-saving design, excellent sterilizability and simple maintenance, the HAMILTON Hygienic Socket is ideally suited for installation in fermenters in the biotechnological and foodstuffs industries.
The advantages are numerous with other applications with tanks or pipes for water treatment plants, and in the pharmaceutical and chemical industries.
For detailed information please ask MECOSA for HAMILTON's Process Sensor Catalogue.
hamiltoncompany
.com

Electrode Holder:
Flow-Through
Cells

Flow cells
HAMILTON manufactures Flow-Through Cells for various applications and from different materials. These include straight-through flow cells, 90° bend flow cells and double-chamber flow cell.
For detailed information please ask MECOSA for HAMILTON's Process Sensor Catalogue.
hamiltoncompany
.com

Electrode Holder:
Armatures

Armatures
HAMILTON's sensor armatures cover a wide spectrum:
Standard armatures suitable for VARIVENT sanitary, TriClamp or weld-in socket process connections.
Pressurizable armatures for applications where high accuracy or long-term stability is required in conjunction with liquid electrolyte electrodes. Such electrodes must be pressurized to ensure flow of the electrolyte solution.
Retractable armatures allows the user to withdraw the sensor while the process is running (i.e. for cleaning, calibration or even to replace the sensor), without interrupting the process.
Pneumatic modular retractable armatures increase process security by various adaptations to a process
For detailed information please ask MECOSA for HAMILTON's Process Sensor Catalogue.
hamiltoncompany
.com

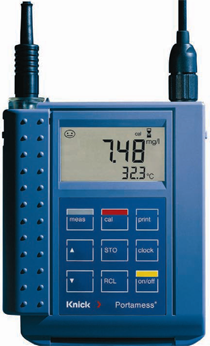

Portable Dissolved Oxygen Meter

Portamess Oxy
For mobile liquid analyses KNICK has developed the pioneering Portamess® Series for pH/Redox, conductivity and dissolved oxygen. These meters combine accuracy and flexibility of a laboratory meter with an enclosure design specially developed for field application.
In practice, the unit convinces with a multitude of details: the protective cover with short instructions, the integrated quiver for storing the electrode, the water-proof enclosure, and many more. As an extraordinary feature, the Portamess is optionally available in Ex-proof, it can measure in Zone 0 locations.
In addition to a basic unit (911 Oxy), a unit with real-time clock, data storage, and interface to PC is provided (913 Oxy)
For detailed information please ask MECOSA for KNICK's Laboratory & Portable Meters Catalogue.
knick.de

Process
Analysers for pH/Redox, Conductivity and Dissolved Oxygen

Stratos pH
KNICK's Stratos® process analysers in 2- and 4-wire technology provide an unbeatable product range including PROFIBUS, FIELDBUS and HART communication. With regard to reliability and innovative technology, the units embody what is currently feasible, naturally also for hazardous applications.
All Stratos® Pro analysers are designed for connection to any customary analogue or digital pH, redox, conductivity and dissolved oxygen sensor (including inductive ones) with significantly enhanced predictive diagnostics.
The Stratos® Eco provides high-tech at an economical price in 4-wire technology.
For detailed information please ask MECOSA for KNICK's Process Analytics Catalogue.
knick.de

Process Analysis Systems
for pH/Redox, Conductivity and Dissolved Oxygen

Protos
With the modular Protos® 3400 (X) process analysis system for pH/redox, conductivity and dissolved oxygen measurements, KNICK is setting new standards. Freely combinable measuring, communication and controller modules as well as state-of-the-art asset management functions ensure unrivalled safety and flexibility.
The Protos® System is available in two models:
Protos® 3400 (X) S:
High-end measuring technology in hygienic, polished stainless steel enclosure.
Protos® 3400 (X) C:
High-end measuring technology in corrosion-resistant coated steel enclosure.
For detailed information please ask MECOSA for KNICK's Process Analytics Catalogue.
knick.de
